Requirement
State the required pin orientation, position and usable delivery pattern at the receiving tool. Identify who accepts the result and what must happen when the station is not ready or a pin falls outside the agreed condition.
Component feeding and sortation
Terminal Pin Feeders Specification Checklist
Use this practical checklist to describe your requirements for terminal pin feeders around representative components, bulk condition and the downstream interface, line connections and required results.
A useful terminal-pin specification identifies the pin range, required end orientation, protected surfaces and receiving-tool position, then defines accepted delivery and recovery evidence. Use the sample-trial guide to separate confirmed dimensions and conditions from points still needing assessment.
Use this checklist for bulk presentation using terminal-pin presentation systems and separate confirmed facts, realistic ranges and items that need a trial.

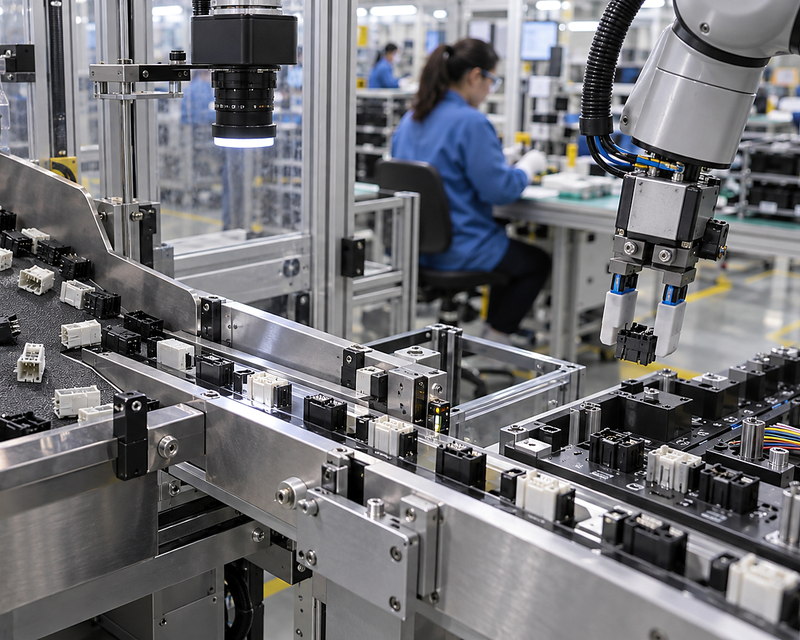

On the production floor
Describe what the complete process needs to achieve — Terminal Pin Feeders
Plan terminal pin feeders around real component variation, bulk condition, orientation, usable delivery rate and the downstream interface. Discuss representative part trials with Sorting Solutions. A clear brief should state the operating range for component geometry and variation for terminal-pin presentation systems and your requirements for jam, damage and recovery acceptance checks.
Discuss your application
Your checklist
Application, operation and results
Product, part or pack
Operation and interfaces
Results and support
Write measurable requirements
For Terminal Pin Feeders, turn each checklist item into a range and a test
Range
Record normal and supplier-variant pin drawings, end features, sensitive surfaces and bulk conditions. Include credible mixed lengths or bent pins with an agreed handling requirement, and list the replenishment and change conditions to be assessed.
Check
Agree the sample set, trial duration or repetitions, checking method and acceptance limits for orientation, delivery and condition. Keep failed-delivery and intervention records with accepted handoffs, including the checks required after replenishment, a change or recovery.
For terminal pin feeders, use “shall” only for a requirement that can be demonstrated. Keep preferences, assumptions, provisional line connections and future options clearly separate.
Connected responsibilities
Be clear about what sits around your terminal pin feeders
Your final terminal pin feeders scope must also account for escapement and downstream pick interface, jam, damage and recovery acceptance checks, current regulations and the conditions at your site.
- Sample trials must include normal, marginal and supplier-variant components.
- Quoted feeder output is not the same as usable delivery at the downstream process.
- Fragile, flexible, magnetic or entangling parts may need a different presentation method.
